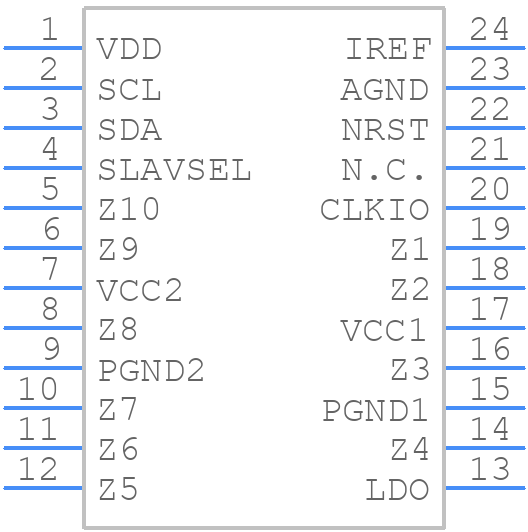

AN32183A-VF - Panasonic

AN32183A-VF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A thermal pad on the bottom of the package is recommended for heat dissipation. A copper plane on the PCB with multiple vias to the thermal pad can help to dissipate heat efficiently.
• How do I ensure reliable operation in high-temperature environments?
  Ensure proper heat sinking, use a thermal interface material (TIM) between the device and heat sink, and follow the recommended operating temperature range (up to 125°C) to ensure reliable operation.
• What are the ESD protection measures for this device?
  The AN32183A-VF has built-in ESD protection, but additional external protection measures such as TVS diodes or ESD arrays can be used to further protect the device from electrostatic discharge.
• Can I use this device in a high-vibration environment?
  Yes, the AN32183A-VF is designed to withstand vibrations up to 10G (10-2000Hz) and can be used in high-vibration environments with proper mounting and PCB design.
• How do I troubleshoot issues with the device's output voltage regulation?
  Check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Consult the datasheet and application notes for troubleshooting guidelines.
