AN41908A-VB - Panasonic

Description: Display Drivers & Controllers

Download AN41908A-VB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

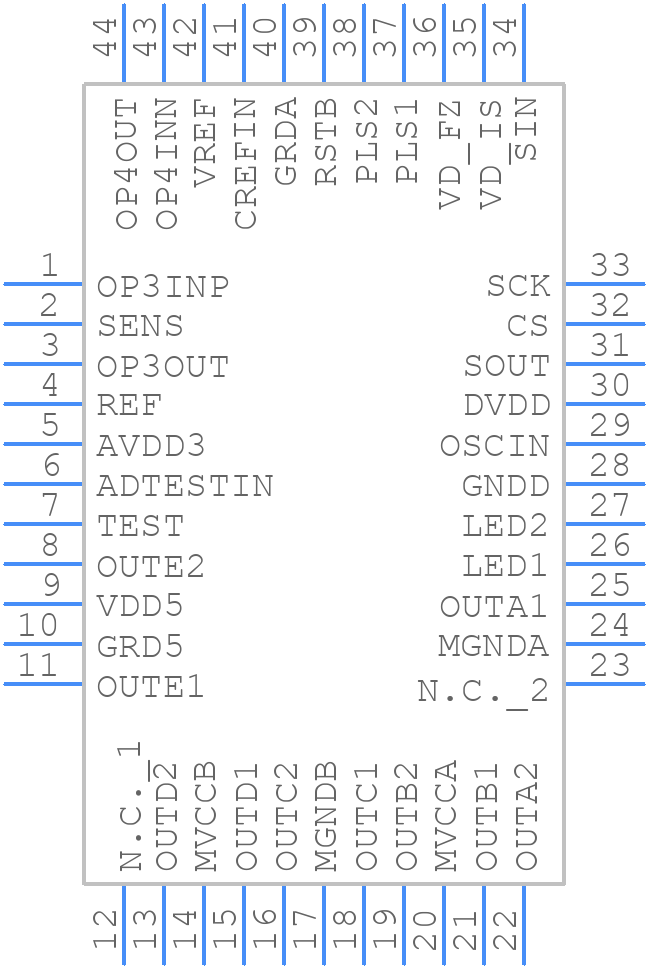

Symbol
AN41908A-VB - Panasonic - PCB symbol
click to zoom
PCB Footprints
AN41908A-VB - Panasonic PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN044-P-0606D
click to zoom
3D Models
AN41908A-VB - Panasonic - 3D model - Quad Flat No-Lead - QFN044-P-0606D
click to zoom

AN41908A-VB Details

  • Manufacturer Part Number:

    AN41908A-VB

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-44

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N44

  • Length:

    6.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC44,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    0.87 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.1 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6.2 mm

AN41908A-VB Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the package for airflow.
  • Implement a heat sink or thermal interface material to reduce thermal resistance. Ensure good airflow and avoid blocking airflow around the device.
  • The maximum allowed voltage on the input pins is 5.5V. Exceeding this voltage may cause damage to the device.
  • Yes, the AN41908A-VB is suitable for battery-powered devices due to its low quiescent current (IQ) of 1.5mA. However, consider power-saving modes and shutdown functionality to minimize power consumption.
  • Check the input voltage, ensure proper power sequencing, and verify the enable pin (EN) is properly driven. Also, check for any short circuits or incorrect pin connections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AN41908A-VB Overview

Use the download button to access the AN41908A-VB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AN419, or try a keyword search, such as Motion Control Electronics
