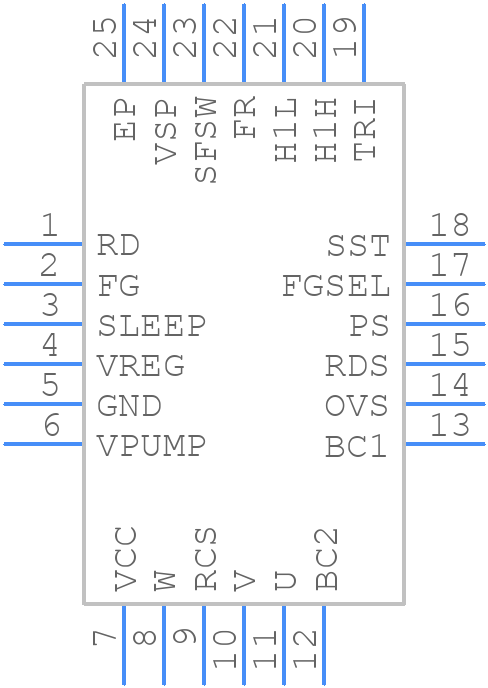

AN44143A - Panasonic

AN44143A Details

• Manufacturer Part Number:

  AN44143A

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  QFN-24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  0

• Analog IC - Other Type:

  3-PHASE BRUSHLESS DC MOTOR CONTROLLER

• JESD-30 Code:

  S-PQCC-N24

• Length:

  4 mm

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  95 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2.2 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Max (Vsup):

  26.4 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  4 mm
