The recommended land pattern for ANT025020LCT1575MA1 can be found in the TDK Corporation's application note or footprint recommendation document, which provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
To minimize the impact of surrounding components and PCB layout on the antenna's performance, it is recommended to follow best practices for antenna design and placement, such as keeping the antenna away from metal components, using a solid ground plane, and minimizing the use of vias and traces near the antenna.
While the datasheet may not specify the maximum operating temperature range, TDK Corporation typically recommends an operating temperature range of -40°C to +85°C for their antennas. However, it's best to consult with TDK Corporation or their authorized distributors for specific temperature range recommendations.
TDK Corporation's antennas are designed to operate in a variety of environments, but they may not be suitable for extremely humid or high-moisture environments. It's recommended to consult with TDK Corporation or their authorized distributors for specific guidance on using ANT025020LCT1575MA1 in such environments.
Tuning the antenna for optimal performance may require simulation and measurement tools, as well as expertise in antenna design and optimization. It's recommended to consult with TDK Corporation or their authorized distributors for guidance on tuning ANT025020LCT1575MA1 for specific applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ANT025020LCT1575MA1 Overview

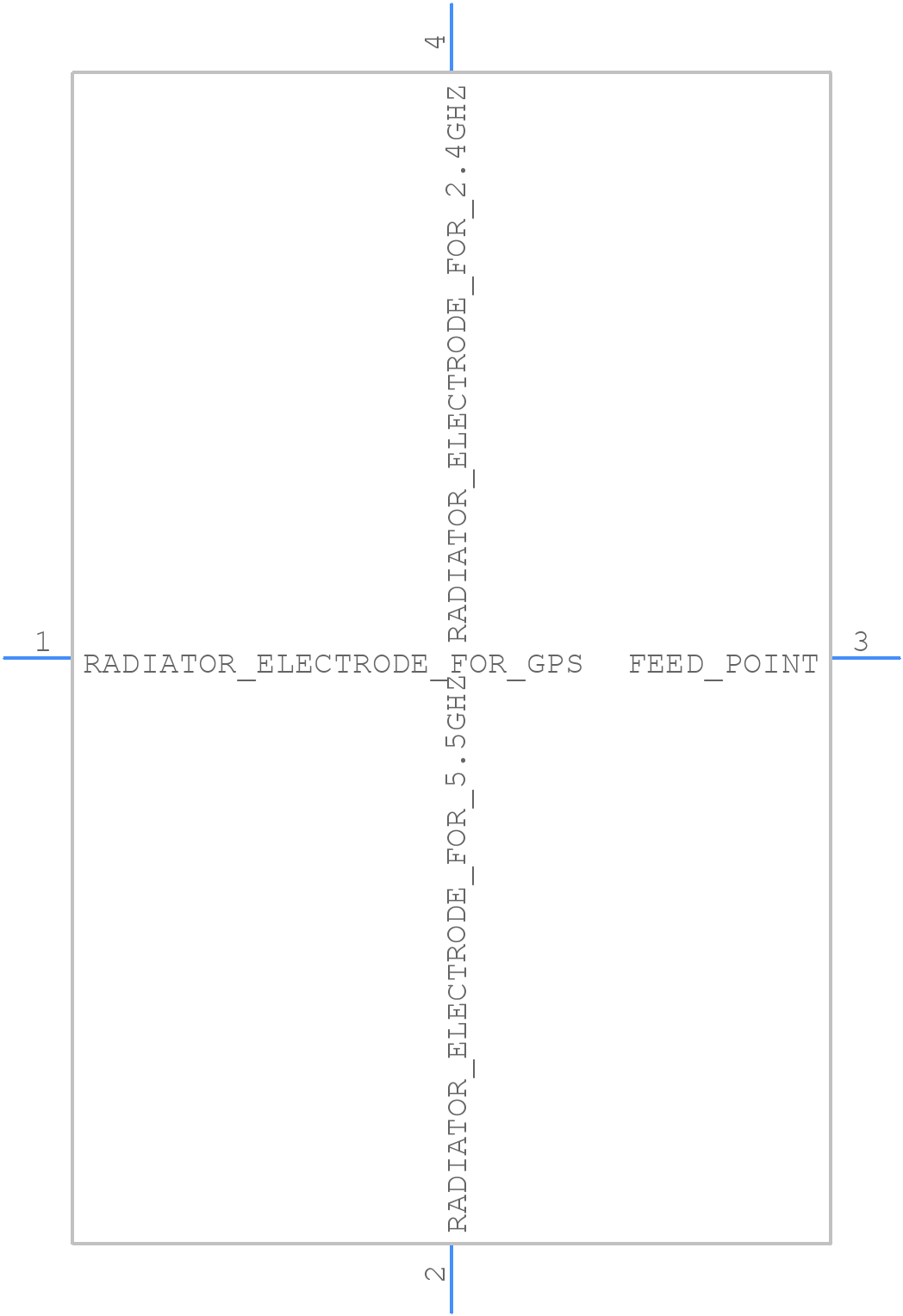

Use the download button to access the ANT025020LCT1575MA1 schematic symbol, PCB footprint, and 3D model.
