TDK recommends a land pattern with a minimum pad size of 1.3mm x 0.8mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
While the datasheet specifies an operating temperature range of -40°C to +125°C, TDK recommends derating the component's power handling capability above 100°C to ensure long-term reliability. Consult with TDK's application engineers for specific guidance.
Keep the antenna at least 10mm away from any metal objects, including PCB edges, and avoid placing high-frequency components or traces near the antenna. Use a solid ground plane under the antenna to improve its performance and reduce radiation patterns.
The typical lead time for ANT162500ST-1002A1 is 12-14 weeks, and the minimum order quantity is 1000 pieces. However, these may vary depending on the region, distributor, and availability. Contact TDK's sales representatives or authorized distributors for the most up-to-date information.
Yes, ANT162500ST-1002A1 is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. However, TDK recommends following the recommended soldering profile and temperature guidelines to ensure reliable assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ANT162500ST-1002A1 Overview

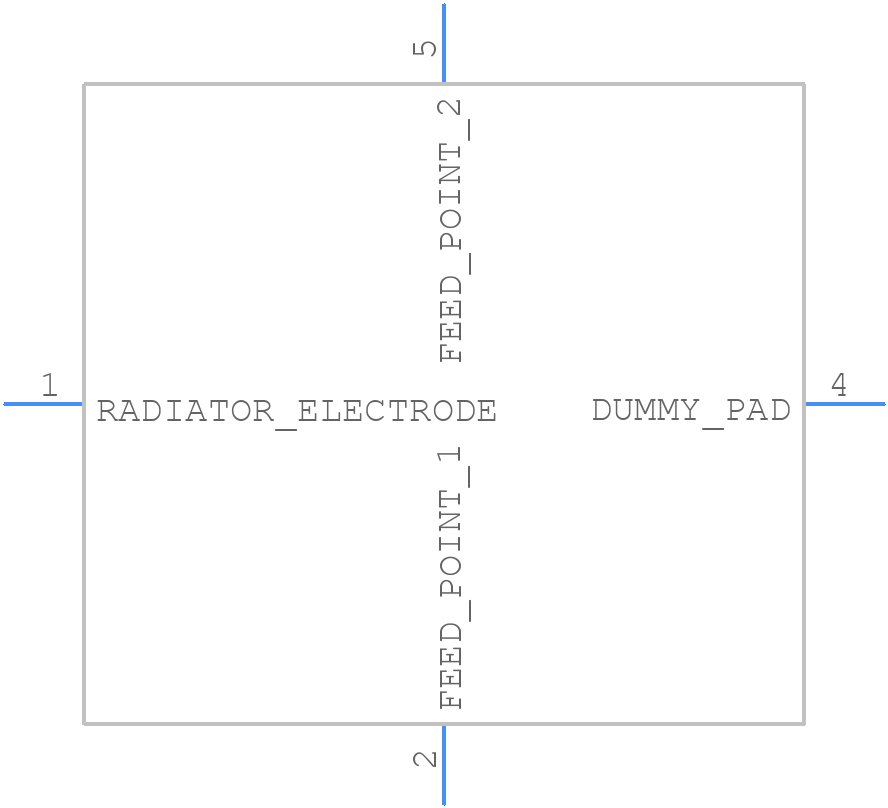

Use the download button to access the ANT162500ST-1002A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ANT16,
or try a keyword search, such as RF/Microwave Antennas
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
