The recommended termination resistance for the AOC2012XAJC-25.0000C is 1 kΩ to ensure proper signal integrity and minimize reflections.
The AOC2012XAJC-25.0000C is rated for operation from -40°C to +85°C, making it suitable for most industrial and commercial applications. However, it's essential to ensure proper thermal management and follow the recommended PCB layout to maintain reliability.
To ensure proper startup and frequency stability, make sure to follow the recommended power-up sequence, provide a stable power supply, and decouple the VDD pin with a 0.01 μF capacitor. Additionally, ensure the oscillator is properly terminated and the PCB layout is optimized for signal integrity.
The AOC2012XAJC-25.0000C is compatible with most standard PCB materials, including FR4, FR5, and others. However, it's essential to ensure the PCB thickness and material meet the recommended specifications to maintain signal integrity and prevent signal loss.
The AOC2012XAJC-25.0000C is designed to minimize EMI and RFI emissions. To further reduce emissions, ensure proper PCB layout, use a ground plane, and follow good design practices for signal routing and shielding.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AOC2012XAJC-25.0000C Overview

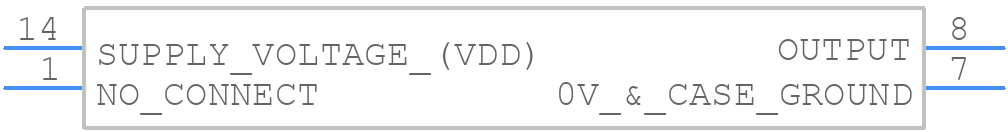

Use the download button to access the AOC2012XAJC-25.0000C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AOC20,
or try a keyword search, such as OCXO
