Abracon recommends a layout with a solid ground plane, minimal signal trace length, and a decoupling capacitor (e.g., 0.01uF) between VCC and GND to ensure stable operation and minimize noise.
The AOCJY-100.000MHZ-F-SW is rated for operation up to 85°C, but its frequency stability may degrade above 70°C. For high-temperature applications, consider using a more temperature-stable oscillator or consulting with Abracon's application engineers.
Yes, but ensure that the oscillator's power supply (VCC) is connected to a stable, low-noise power domain. Isolate the oscillator from other power domains using decoupling capacitors and consider using a voltage regulator to maintain a stable voltage supply.
The AOCJY-100.000MHZ-F-SW has a CMOS output stage, which can drive a load of up to 15pF. For optimal performance, use a drive strength of 2-4mA to ensure reliable signal transmission and minimize signal degradation.
The AOCJY-100.000MHZ-F-SW has a shielded package to minimize EMI and RFI susceptibility. However, it's still important to follow good PCB design practices, such as using a solid ground plane, minimizing signal trace length, and using EMI filters or shielding if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AOCJY-100.000MHZ-F-SW Overview

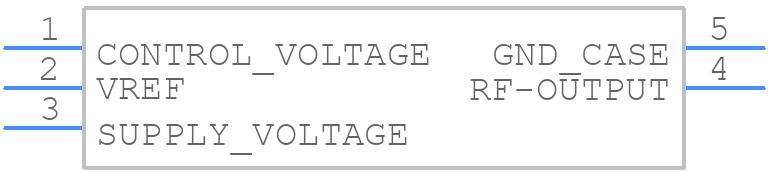

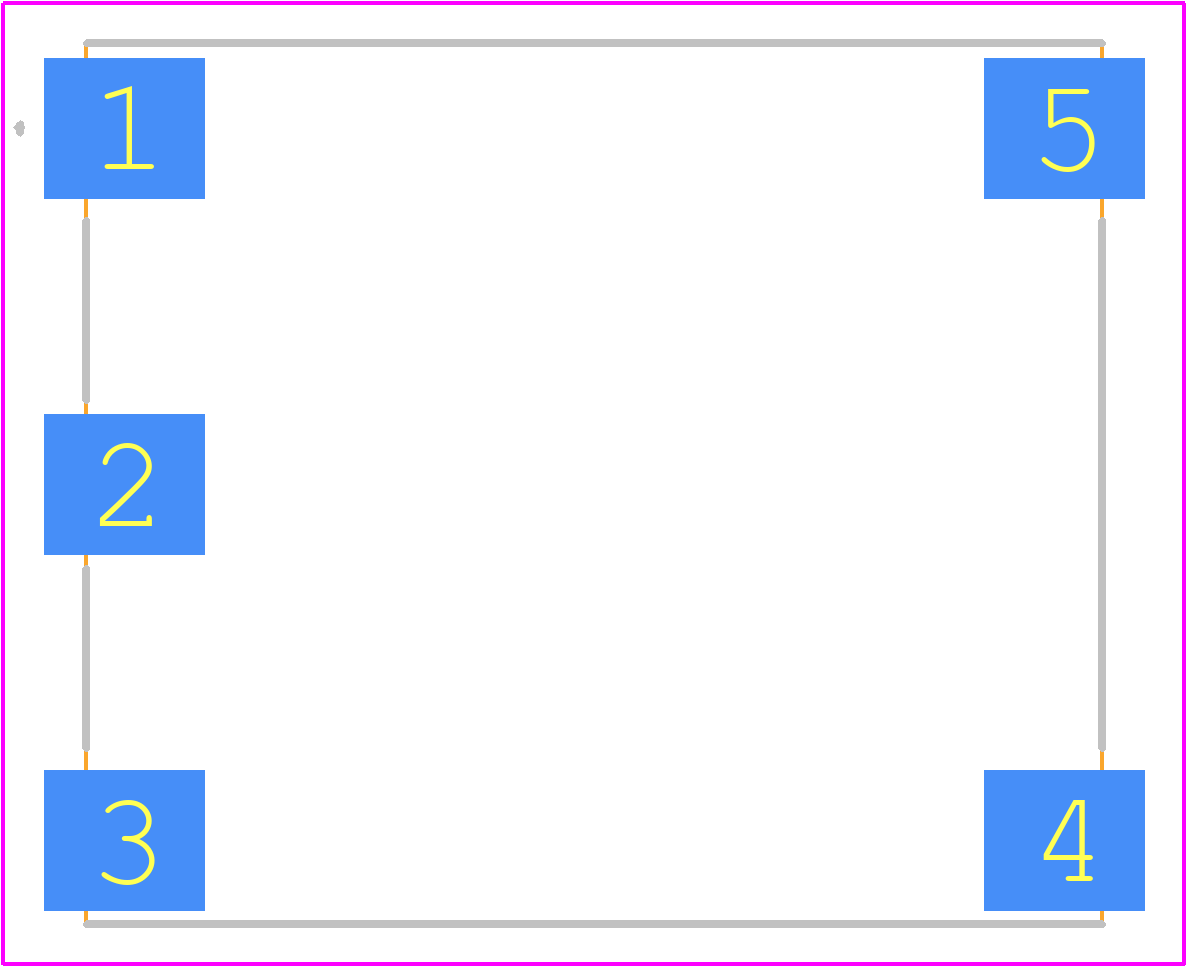

Use the download button to access the AOCJY-100.000MHZ-F-SW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY,
or try a keyword search, such as OCVCXO
