AOCJYR-12.800MHZ-M5649LF footprint, schematic symbol and 3D model by ABRACON

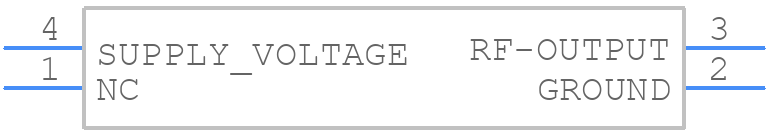

Symbol

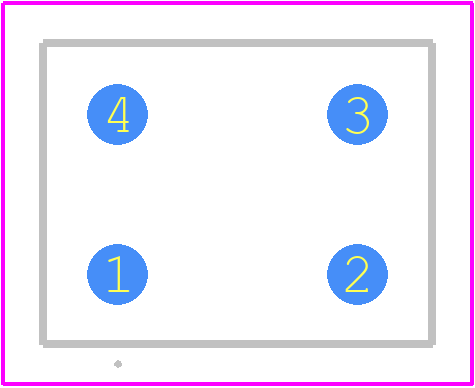

PCB Footprints

3D Models

AOCJYR-12.800MHZ-M5649LF Details

Abracon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
Handle AOCJYR-12.800MHZ-M5649LF by the package body, avoiding touching the pins or electrical contacts. Store the components in their original packaging, away from direct sunlight, moisture, and extreme temperatures.
The maximum operating temperature range for AOCJYR-12.800MHZ-M5649LF is -40°C to +85°C. Operating the component outside this range may affect its performance and reliability.
AOCJYR-12.800MHZ-M5649LF is designed to withstand moderate vibration levels. However, it's essential to ensure the component is properly mounted and secured to prevent damage or dislodging in high-vibration environments.
Abracon provides a recommended PCB layout and land pattern in the datasheet. It's crucial to follow these guidelines to ensure proper component operation and prevent thermal and electrical issues.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AOCJYR-12.800MHZ-M5649LF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY, or try a keyword search, such as OCXO
