AP1017AEN footprint, schematic symbol and 3D model by Asahi Kasei Microdevices

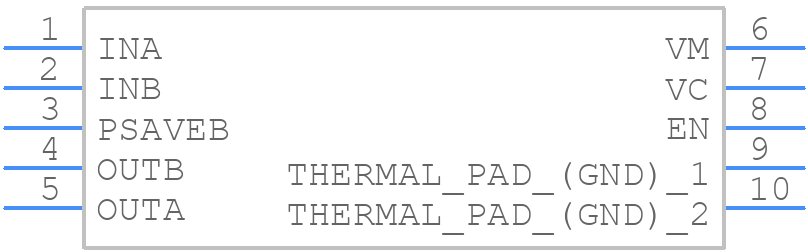

Symbol

click to zoom

PCB Footprints

AP1017AEN - Asahi Kasei Microdevices PCB footprint - Other - Other - 8-pin SON

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AP1017AEN
Part Number AP1017AEN
Manufacturer Asahi Kasei Microdevices
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 8-pin SON
Released Date Dec 5, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AP1017AEN Details

Manufacturer Part Number:
AP1017AEN
Part Life Cycle Code:
Obsolete
Package Description:
SON-8
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Asahi Kasei Microsystems Corporation
YTEOL:
0
Additional Feature:
ALSO REQUIRED VM SUPPLY 1.8 TO 12V
Analog IC - Other Type:
3-PHASE BRUSHLESS DC MOTOR CONTROLLER
JESD-30 Code:
S-PDSO-N8
Length:
2 mm
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-30 °C
Output Current-Max:
3.3 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.6 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
2 mm

AP1017AEN Frequently Asked Questions (FAQs)

A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The AP1017AEN's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1 ohm or less, and to decouple the input with a 1uF capacitor.
The maximum input voltage that can be applied to the AP1017AEN is 18V, but it is recommended to operate within the specified input voltage range of 7V to 15V for optimal performance and reliability.
The AP1017AEN has a built-in overcurrent protection (OCP) feature that limits the output current to 2.5A. Additionally, it is recommended to add external overcurrent protection, such as a fuse or a current-sensing resistor, to prevent damage from excessive current.
The recommended operating temperature range for the AP1017AEN is -40°C to 85°C, but it can operate up to 125°C with derated specifications.
