A good thermal design is crucial for the AP1025BEN. It's recommended to have a solid ground plane under the IC, use thermal vias to dissipate heat, and keep the PCB layer stack-up symmetrical to minimize thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a heat sink if necessary, and implement thermal monitoring and protection mechanisms in your design.
Using a different input capacitor value than recommended may affect the stability and performance of the AP1025BEN. It's recommended to follow the datasheet guidelines for input capacitor selection to ensure optimal performance and stability.
Yes, the AP1025BEN can be used in high-current output designs, but it's essential to ensure that the output current does not exceed the maximum rating of 2A. Additionally, proper thermal design and heat sinking may be necessary to prevent overheating.
To troubleshoot issues with the AP1025BEN, start by verifying the PCB layout and component selection, then check the input and output voltage levels, and finally, use an oscilloscope to analyze the switching waveforms and identify any signs of oscillation or instability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP1025BEN Overview

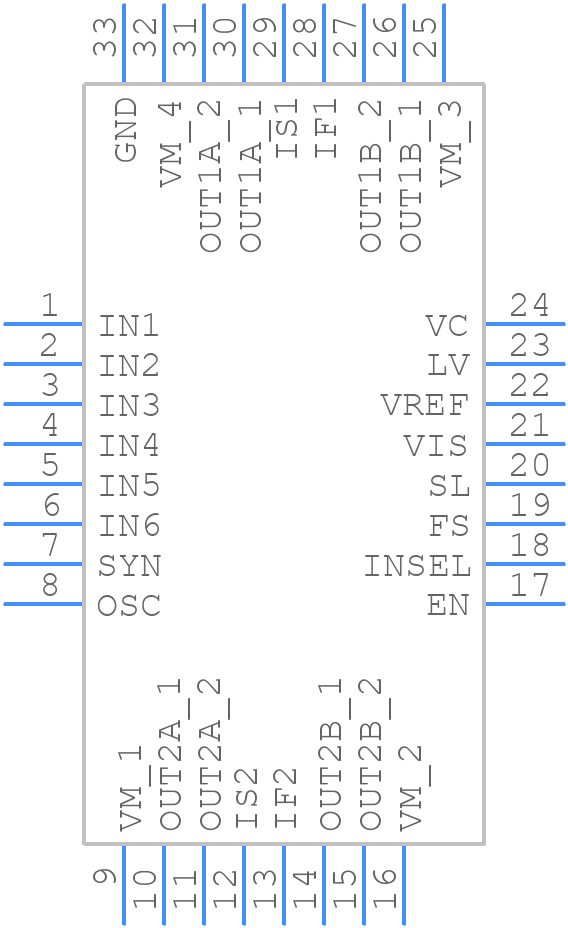

Use the download button to access the AP1025BEN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP102,
or try a keyword search, such as Motion Control Electronics
