AP1155ADL - Asahi Kasei Microdevices

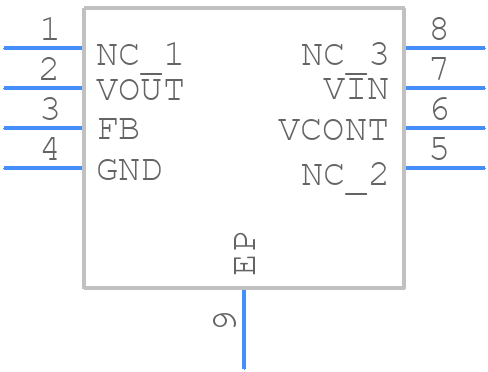

AP1155ADL Details

• Manufacturer Part Number:

  AP1155ADL

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  HSOP-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Asahi Kasei Microsystems Corporation

• YTEOL:

  0

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.49 V

• Dropout Voltage1-Nom:

  0.3 V

• JESD-30 Code:

  R-PDSO-G8

• Length:

  5.2 mm

• Load Regulation-Max(%):

  2.6923%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  1 A

• Output Voltage1-Max:

  13.5 V

• Output Voltage1-Min:

  1.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.7 mm

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
