AP1501-50K5A - Diodes Incorporated

AP1501-50K5A Details

• Manufacturer Part Number:

  AP1501-50K5A

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

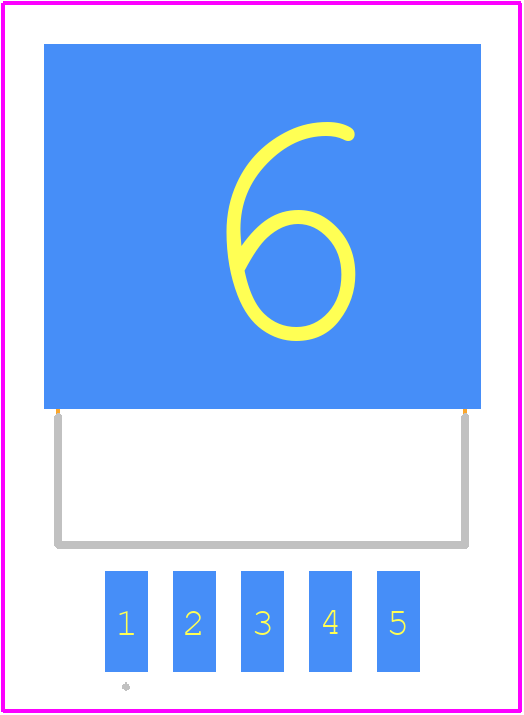

• Part Package Code:

  D2PAK

• Package Description:

  TO-263, 5 PIN

• Pin Count:

  4

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  7 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PSSO-G5

• JESD-609 Code:

  e0

• Length:

  10.16 mm

• Number of Functions:

  1

• Number of Terminals:

  5

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  6.5 A

• Output Voltage-Max:

  5.25 V

• Output Voltage-Min:

  4.75 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TO-263

• Package Equivalence Code:

  SMSIP5H,.6,67TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.85 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  173 kHz

• Technology:

  BIPOLAR

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.7 mm

• Terminal Position:

  SINGLE

• Width:

  9.15 mm
