A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values and types, as well as to ensure that the input voltage is within the recommended range. Additionally, the output voltage should be decoupled with a capacitor to filter out any noise or ripple.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the device's performance at higher temperatures. For reliable operation, it's recommended to keep the ambient temperature below 85°C to ensure optimal performance and reliability.
While the AP2141SG-13 is a high-quality device, it's essential to evaluate its suitability for high-reliability or automotive applications. Diodes Incorporated provides a range of automotive-grade devices, and it's recommended to consult with their application engineers to determine the best device for your specific requirements.
To protect the device from overvoltage or undervoltage conditions, it's recommended to use a voltage supervisor or a power-on reset circuit to monitor the input voltage and reset the device if it falls outside the recommended range. Additionally, using a TVS diode or a zener diode can help to clamp any voltage transients or spikes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP2141SG-13 Overview

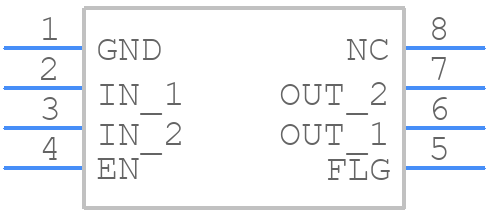

Use the download button to access the AP2141SG-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP214,
or try a keyword search, such as Power Management Circuits
