SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR, 13 INCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+1.9V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
AP2161MPG-13 Frequently Asked Questions (FAQs)
A good PCB layout for the AP2161MPG-13 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To ensure stable output voltage regulation, ensure the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and low ESR. Also, minimize the distance between the output capacitor and the device, and use a low-impedance output capacitor.
The AP2161MPG-13 is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and ensure optimal performance.
While the AP2161MPG-13 is a high-quality device, it's essential to evaluate its suitability for high-reliability or automotive applications. Diodes Incorporated provides a range of automotive-grade and high-reliability devices; consult with their application engineers to determine the best device for your specific requirements.
For optimal performance, use a 10uF to 22uF ceramic or electrolytic capacitor with low ESR (less than 1 ohm) for the input capacitor. For the output capacitor, use a 10uF to 47uF ceramic or electrolytic capacitor with low ESR (less than 1 ohm). Ensure the capacitors are rated for the maximum input voltage and operating temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP2161MPG-13 Overview

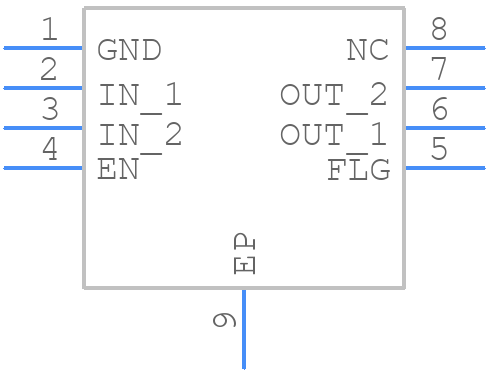

Use the download button to access the AP2161MPG-13 schematic symbol, PCB footprint, and 3D model.
