AP2162AMPG-13 - Diodes Incorporated

Description: Power Switch ICs - Power Distribution DUAL SWITCH 125mOhms 1A

Download AP2162AMPG-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

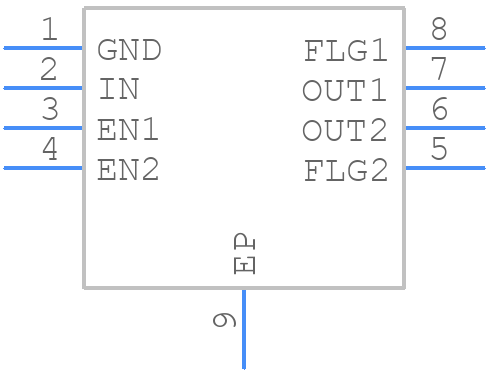

AP2162AMPG-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AP2162AMPG-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - msop-ep8
click to zoom
3D Models
AP2162AMPG-13 - Diodes Incorporated - 3D model - Small Outline Packages - msop-ep8
click to zoom

AP2162AMPG-13 Details

  • Manufacturer Part Number:

    AP2162AMPG-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    GREEN, MSOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AP2162AMPG-13 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AP2162AMPG-13 should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC. This helps to reduce thermal resistance and ensures reliable operation.
  • To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, decoupling capacitors should be placed close to the IC, and the input capacitor should be rated for the maximum input voltage.
  • The AP2162AMPG-13 is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the device's power dissipation to ensure reliable operation at higher temperatures.
  • While the AP2162AMPG-13 is a high-quality device, it may not meet the specific requirements for high-reliability or automotive applications. It's recommended to consult with Diodes Incorporated or a qualified engineer to determine the suitability of the device for such applications.
