A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad of the AP2171WG-7 to the ground plane. This helps to dissipate heat efficiently.
To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) and a suitable output voltage divider network.
Although the datasheet specifies a maximum input voltage of 26V, it's recommended to limit the input voltage to 24V to ensure reliable operation and to prevent damage to the device.
While the AP2171WG-7 is rated for operation up to 125°C, it's essential to consider the thermal derating curve and ensure that the device does not exceed its maximum junction temperature (Tj) of 150°C. Proper thermal design and heat sinking are crucial in high-temperature environments.
To troubleshoot issues with the AP2171WG-7, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the datasheet recommendations. Use an oscilloscope to inspect the output voltage waveform and look for signs of oscillation or instability. If the issue persists, consult the datasheet's troubleshooting section or contact Diodes Incorporated's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP2171WG-7 Overview

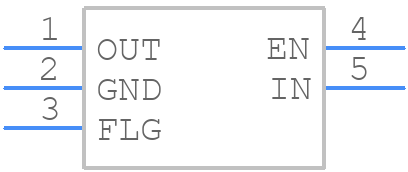

Use the download button to access the AP2171WG-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP217,
or try a keyword search, such as Power Management Circuits
