AP2172MPG-13 - Diodes Incorporated

Description: Power Switch ICs - Power Distribution INTRFCE USB PW SWTCH DUAL CHN 1A 2.7-5.5

Download AP2172MPG-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

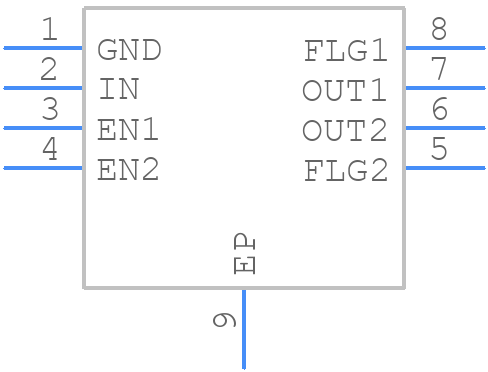

AP2172MPG-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AP2172MPG-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-8EPsssss
click to zoom
3D Models
AP2172MPG-13 - Diodes Incorporated - 3D model - Small Outline Packages - MSOP-8EPsssss
click to zoom

AP2172MPG-13 Details

  • Manufacturer Part Number:

    AP2172MPG-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7.05

  • Additional Feature:

    CURRENT LIMIT:1.5A; THERMAL SHUTDOWN:140C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AP2172MPG-13 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the AP2172MPG-13 is 26V, but it's recommended to operate within the specified input voltage range of 7V to 24V for optimal performance.
  • To ensure the stability of the output voltage, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor with a low ESR, and minimize the distance between the output capacitor and the regulator.
  • The minimum input capacitance required for the AP2172MPG-13 is 1uF, but it's recommended to use a 4.7uF or larger capacitor to ensure stability and reduce input voltage ripple.
  • The AP2172MPG-13 is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. Make sure to follow the recommended thermal design guidelines to ensure reliable operation in high-temperature environments.
  • The power dissipation of the AP2172MPG-13 can be calculated using the formula: Pd = (Vin - Vout) x Iout. Make sure to consider the maximum power dissipation rating of 1.5W and the thermal resistance of the package when designing your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AP2172MPG-13 Overview

Use the download button to access the AP2172MPG-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP217, or try a keyword search, such as Power Management Circuits
