AP2182AFGEG-7 - Diodes Incorporated

Description: Power Switch ICs - Power Distribution DUAL SWITCH 125mOhms 1.5A

Download AP2182AFGEG-7 Model
Schematic

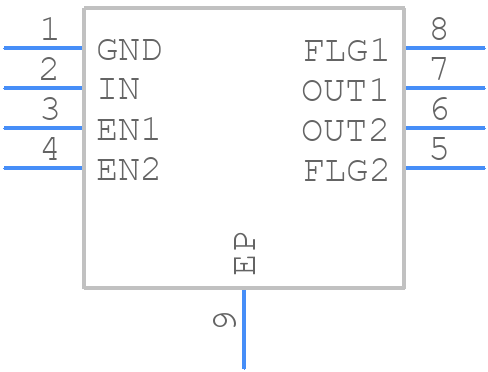

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AP2182AFGEG-7 - Diodes Incorporated PCB footprint - Small Outline No-lead - Small Outline No-lead - U-DFN3030-8
click to zoom
3D Models
AP2182AFGEG-7 - Diodes Incorporated  - 3D model - Small Outline No-lead - U-DFN3030-8
click to zoom

AP2182AFGEG-7 Details

  • Manufacturer Part Number:

    AP2182AFGEG-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    3 X 3 MM, GREEN, DFN-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.63 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AP2182AFGEG-7 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the AP2182AFGEG-7 is 26V, but it's recommended to operate within the specified input voltage range of 7V to 23V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor with a low ESR, and add a 1uF ceramic capacitor between the VIN and GND pins to filter out noise.
  • The minimum input capacitance required for the AP2182AFGEG-7 is 1uF, but it's recommended to use a 4.7uF or 10uF capacitor to ensure stable operation and minimize input voltage ripple.
  • The AP2182AFGEG-7 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage to ensure reliable operation in high-temperature environments.
  • The power dissipation of the AP2182AFGEG-7 can be calculated using the formula: Pd = (VIN - VOUT) x IOUT + (VIN x IQ), where IQ is the quiescent current.
