A good PCB layout for the AP2192ASG-13 should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern under the IC. This helps to reduce thermal resistance and improve heat dissipation.
To ensure stable output voltage regulation, make sure to decouple the input and output with suitable capacitors, and use a stable input voltage source. Additionally, ensure that the output capacitor is of sufficient value and type to maintain stability.
The AP2192ASG-13 is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and ensure optimal performance.
While the AP2192ASG-13 is a high-quality device, it may not meet the specific requirements for high-reliability or automotive applications. It's essential to review the device's qualification and certification status, as well as its operating conditions, to ensure it meets the specific application requirements.
To protect the AP2192ASG-13 from overvoltage and overcurrent conditions, consider adding external overvoltage protection (OVP) and overcurrent protection (OCP) circuits. These can include devices such as TVS diodes, zener diodes, or dedicated OVP/OCP ICs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP2192ASG-13 Overview

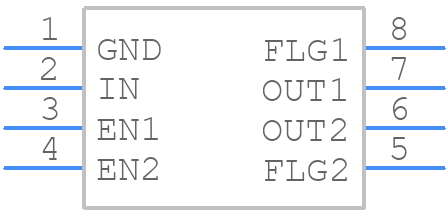

Use the download button to access the AP2192ASG-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP219,
or try a keyword search, such as Power Management Circuits
