AP2204MP-ADJTRG1 - Diodes Incorporated

Description: DiodesZetex AP2204MP-ADJTRG1, LDO Regulator, 150mA Adjustable, 1.24 → 22 V 8-Pin, PSOP

Download AP2204MP-ADJTRG1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

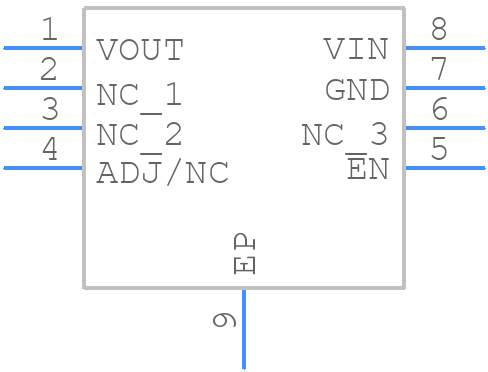

AP2204MP-ADJTRG1 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AP2204MP-ADJTRG1 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - PSOP-81
click to zoom
3D Models
AP2204MP-ADJTRG1 - Diodes Incorporated - 3D model - Small Outline Packages - PSOP-81
click to zoom

AP2204MP-ADJTRG1 Details

  • Manufacturer Part Number:

    AP2204MP-ADJTRG1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    22 V

  • Output Voltage1-Min:

    1.24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AP2204MP-ADJTRG1 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the AP2204MP-ADJTRG1 is 25V, but it's recommended to operate within the specified input voltage range of 7V to 23V for optimal performance and reliability.
  • The output voltage of the AP2204MP-ADJTRG1 can be adjusted by connecting a resistor divider network between the ADJ pin and the output voltage pin. The ratio of the resistors determines the output voltage, which can be calculated using the formula provided in the datasheet.
  • The minimum input capacitance required for the AP2204MP-ADJTRG1 is 10uF, but it's recommended to use a higher capacitance value (e.g., 22uF) to ensure stable operation and minimize input voltage ripple.
  • The AP2204MP-ADJTRG1 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to ensure reliable operation in high-temperature environments.
  • To ensure stability and prevent oscillation, it's recommended to follow the layout guidelines provided in the datasheet, use a low-ESR output capacitor, and minimize the distance between the input and output capacitors and the AP2204MP-ADJTRG1.
