A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure proper power-on and power-off, it is recommended to use a soft-start circuit to limit the inrush current and to prevent voltage spikes. Additionally, a power-on reset circuit can be used to ensure the device is properly reset during power-on.
To prevent damage, it is recommended to handle the device by the body and not the pins, use an anti-static wrist strap or mat, and avoid touching the pins or exposed pads. Additionally, the device should be stored in an anti-static bag or tube to prevent damage from electrostatic discharge.
To troubleshoot issues with the device, it is recommended to check the input voltage, output voltage, and current consumption. Additionally, check for any signs of physical damage, such as cracks or burn marks. If the issue persists, consult the datasheet and application notes for further guidance.
Yes, the input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, and the output capacitor should be a low-ESR ceramic capacitor with a value of at least 22uF. The capacitors should be placed as close to the device as possible to minimize noise and ensure stable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP22802BW5-7 Overview

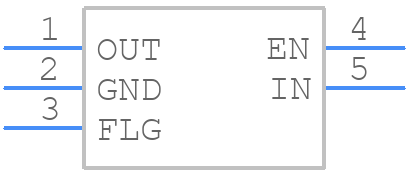

Use the download button to access the AP22802BW5-7 schematic symbol, PCB footprint, and 3D model.
