A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, a minimum of 10uF capacitance on the input and output is recommended to prevent oscillation.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
The AP22804BW5-7 is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments to prevent overheating.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component values, and thermal management. If issues persist, consult the datasheet and application notes or contact Diodes Incorporated's technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP22804BW5-7 Overview

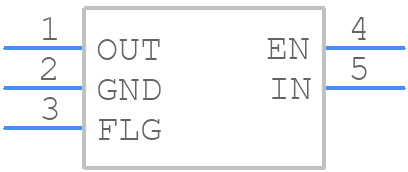

Use the download button to access the AP22804BW5-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP228,
or try a keyword search, such as Power Management Circuits
