AP22815AWT-7 - Diodes Incorporated

Description: Power Switch ICs - Power Distribution 3.0A SINGLE CH PWR DIST SWITCH

Download AP22815AWT-7 Model

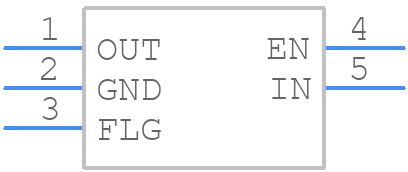

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AP22815AWT-7 - Diodes Incorporated PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - TSOT25
click to zoom
3D Models
AP22815AWT-7 - Diodes Incorporated  - 3D model - SOT23 (5-Pin) - TSOT25
click to zoom

AP22815AWT-7 Details

  • Manufacturer Part Number:

    AP22815AWT-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-25, 5 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2018-08-06

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

AP22815AWT-7 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, use a low-ESR output capacitor and ensure the input capacitor is properly decoupled.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to derate the input voltage to 5V to ensure reliable operation and to prevent damage to the device.
  • While it's possible to use a different inductor value or type, it's not recommended as it may affect the device's performance and stability. The recommended inductor value and type are carefully selected to ensure optimal performance.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values against the datasheet recommendations. Use an oscilloscope to check for oscillations or ringing on the output.
