AP22980FCF10-7 - Diodes Incorporated

Description: Power Switch ICs - Power Distribution Load Switch W-QFN1520-10 T&R 3K

Download AP22980FCF10-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

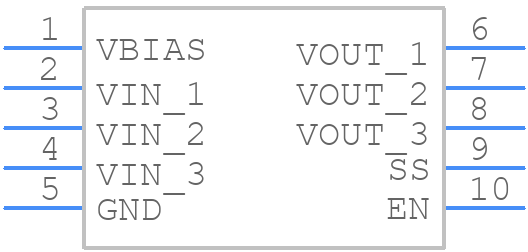

AP22980FCF10-7 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AP22980FCF10-7 - Diodes Incorporated PCB footprint - Other - Other - W-QFN1520-10
click to zoom
3D Models
AP22980FCF10-7 - Diodes Incorporated - 3D model - Other - W-QFN1520-10
click to zoom

AP22980FCF10-7 Details

  • Manufacturer Part Number:

    AP22980FCF10-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WQFN-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Additional Feature:

    THERMAL SHUTDOWN:150C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XQCC-N10

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC10,.06X.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.285 V

  • Supply Voltage-Nom (Vsup):

    0.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    1.5 mm

AP22980FCF10-7 Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a PCB layout with a solid ground plane and a thermal relief pattern under the IC to improve thermal dissipation. A minimum of 2oz copper thickness is recommended for the PCB.
  • The AP22980FCF10-7 requires a bias voltage of 5V to 12V on the VIN pin, and a minimum of 1.5V on the VCC pin. Ensure that the input voltage is within the recommended range and that the device is properly decoupled with capacitors.
  • The maximum current rating for the output pins (OUT1 and OUT2) is 1.5A per pin. However, the total current drawn from both pins should not exceed 3A.
  • The output voltage can be adjusted by connecting a resistor divider network between the VOUT pin and the GND pin. The ratio of the resistors determines the output voltage. Refer to the datasheet for a detailed calculation formula.
  • The EN (Enable) pin is used to enable or disable the device. When the EN pin is pulled high (above 2.5V), the device is enabled. When the EN pin is pulled low (below 0.8V), the device is disabled. This pin can be used to implement power-saving modes or to control the device's operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AP22980FCF10-7 Overview

Use the download button to access the AP22980FCF10-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP229, or try a keyword search, such as Power Management Circuits
