The recommended PCB layout for optimal performance of the AP2301AS-13 includes keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a separate power plane for the input and output voltages to reduce noise and improve stability.
To ensure the AP2301AS-13 is stable and does not oscillate, it is recommended to follow the recommended PCB layout, use a sufficient output capacitor (at least 10uF), and ensure that the input voltage is within the recommended range. Additionally, the device should be operated within the recommended temperature range and the input and output voltages should be decoupled using capacitors.
The maximum input voltage that can be applied to the AP2301AS-13 is 18V. Exceeding this voltage may damage the device. It is recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage does not exceed the maximum rating.
The AP2301AS-13 is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
The output voltage of the AP2301AS-13 can be calculated using the following formula: Vout = (1 + R1/R2) x Vref, where R1 and R2 are the resistors used in the feedback network and Vref is the internal reference voltage (1.25V).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP2301AS-13 Overview

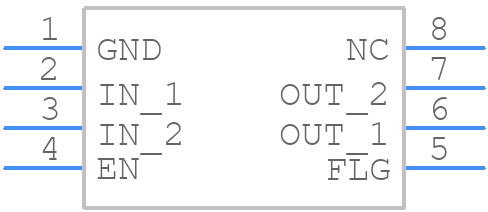

Use the download button to access the AP2301AS-13 schematic symbol, PCB footprint, and 3D model.
