AP2411MP-13 - Diodes Incorporated

Description: DiodesZetex AP2411MP-13, Dual USB Power Switch, High Side, 135mΩ, 2.7 V min., 8-Pin MSOP

Download AP2411MP-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

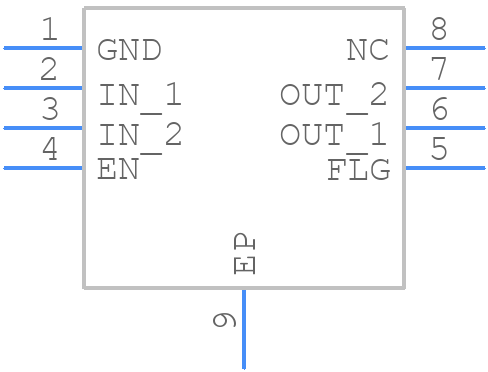

Symbol
AP2411MP-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AP2411MP-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - AP2411MP-13
click to zoom
3D Models
AP2411MP-13 - Diodes Incorporated - 3D model - Small Outline Packages - AP2411MP-13
click to zoom

AP2411MP-13 Details

  • Manufacturer Part Number:

    AP2411MP-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AP2411MP-13 Frequently Asked Questions (FAQs)

  • The AP2411MP-13 can handle a maximum input voltage of 18V, but it's recommended to operate within the specified input voltage range of 7V to 15V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a minimum capacitance of 10uF and an ESR of less than 1 ohm. Additionally, the input capacitor should be at least 1uF with an ESR of less than 1 ohm.
  • The AP2411MP-13 can provide a maximum output current of 1A, but it's recommended to operate within the specified output current range of 0.1A to 0.5A for optimal performance and to prevent overheating.
  • The output voltage of the AP2411MP-13 can be calculated using the formula: Vout = (R1 / R2) * (Vin - Vref), where R1 and R2 are the resistors connected to the FB pin, Vin is the input voltage, and Vref is the reference voltage (1.25V).
  • The EN (enable) pin is used to enable or disable the AP2411MP-13. When the EN pin is pulled high (above 2V), the device is enabled, and when it's pulled low (below 0.8V), the device is disabled. This pin can be used to implement power sequencing or to turn the device on and off.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AP2411MP-13 Overview

Use the download button to access the AP2411MP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP241, or try a keyword search, such as Power Management Circuits
