The recommended PCB layout for optimal performance of the AP2501S-13 includes keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a separate power plane for the input and output voltages to reduce noise and improve stability.
To ensure the AP2501S-13 is stable and does not oscillate, it is recommended to follow the recommended PCB layout, use a sufficient output capacitor (at least 10uF), and ensure that the input voltage is within the recommended range. Additionally, it is recommended to add a small resistor (around 1-2 ohms) in series with the output capacitor to dampen any oscillations.
The AP2501S-13 can operate at a maximum ambient temperature of 85°C. However, it is recommended to derate the device's power dissipation at higher temperatures to ensure reliable operation.
Yes, the AP2501S-13 is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it is recommended to follow the recommended operating conditions and PCB layout to ensure the device operates within its specifications.
The power dissipation of the AP2501S-13 can be calculated using the following formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Additionally, the device's internal power dissipation should also be considered, which can be calculated using the device's quiescent current and the input voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP2501S-13 Overview

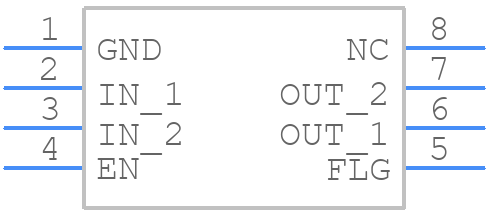

Use the download button to access the AP2501S-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP250,
or try a keyword search, such as Power Management Circuits
