A good PCB layout for the AP2553AW6-7 should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC. This helps to reduce thermal resistance and improve heat dissipation.
To ensure stable output voltage regulation, make sure to decouple the input and output with suitable capacitors, and use a stable input voltage source. Additionally, ensure the output capacitor is sufficient to handle the output current and ripple requirements.
The AP2553AW6-7 can operate reliably up to an ambient temperature of 85°C. However, it's essential to consider the device's thermal characteristics, PCB layout, and airflow to ensure reliable operation within the specified temperature range.
While the AP2553AW6-7 is a high-quality device, it's essential to evaluate its suitability for high-reliability or automotive applications. Consider factors like temperature range, vibration, and electromagnetic compatibility to ensure the device meets the specific requirements of your application.
To protect the AP2553AW6-7 from overvoltage and overcurrent conditions, consider adding external protection components such as TVS diodes, zener diodes, or fuses. Additionally, ensure the input voltage and current are within the specified limits to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP2553AW6-7 Overview

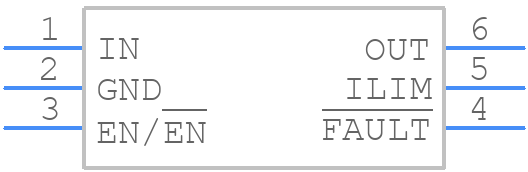

Use the download button to access the AP2553AW6-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP255,
or try a keyword search, such as Power Management Circuits
