A good PCB layout for the AP3441SHE-7B should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC. This helps to reduce thermal resistance and ensures reliable operation.
To ensure stable output voltage regulation, it's essential to follow the recommended capacitor selection and placement guidelines, maintain a low-ESR output capacitor, and minimize the distance between the capacitor and the IC.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the IC.
While the AP3441SHE-7B is rated for operation up to 125°C, it's essential to consider the thermal derating curve and ensure that the IC does not exceed the maximum junction temperature (Tj) of 150°C to prevent damage or malfunction.
To troubleshoot issues with the AP3441SHE-7B, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, capacitor selection, and thermal management. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP3441SHE-7B Overview

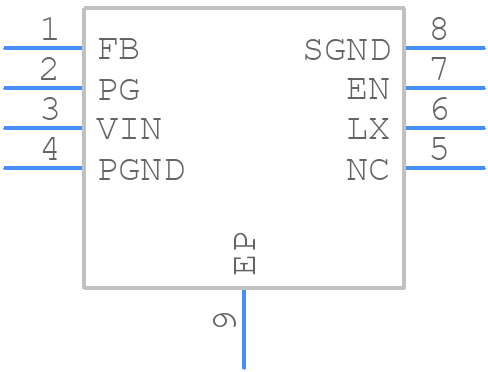

Use the download button to access the AP3441SHE-7B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP344,
or try a keyword search, such as Switching Regulator or Controllers
