The recommended PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, use a low-ESR output capacitor, and place it close to the IC. Also, ensure that the input voltage is within the recommended range and the output is properly decoupled.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the IC.
While the AP3928S-13 is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management when operating in high-temperature environments. Ensure proper heat sinking and follow the recommended thermal design guidelines to prevent overheating.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper component values, PCB layout, and thermal design. Use an oscilloscope to monitor the output voltage and current. If the issue persists, consult the datasheet and application notes or contact Diodes Incorporated's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP3928S-13 Overview

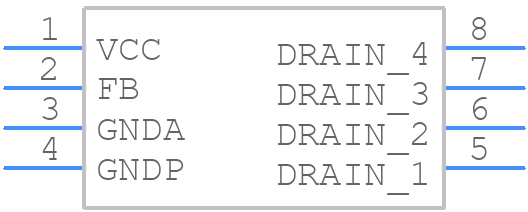

Use the download button to access the AP3928S-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP392,
or try a keyword search, such as Switching Regulator or Controllers
