A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently and reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
The AP4310AMTR-G1 has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent ESD damage. For latch-up prevention, ensure that the device is operated within the recommended operating conditions, and avoid applying excessive voltage or current to the device.
The AP4310AMTR-G1 is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper qualification and testing. It's essential to consult with Diodes Incorporated's application engineers to discuss specific requirements and ensure the device meets the necessary standards and regulations.
Follow the recommended soldering and assembly procedures outlined in the datasheet, and ensure that the device is handled and stored according to the manufacturer's guidelines. It's also essential to use a soldering iron with a temperature-controlled tip and to avoid applying excessive heat or force during assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP4310AMTR-G1 Overview

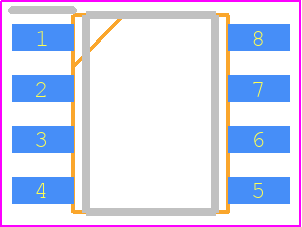

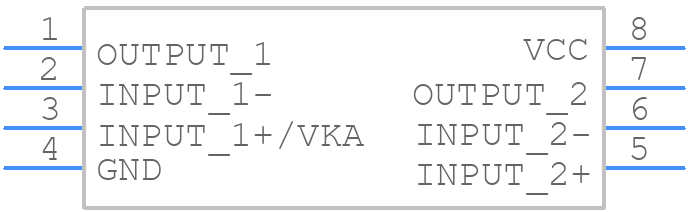

Use the download button to access the AP4310AMTR-G1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP431,
or try a keyword search, such as Other Signal Circuits
