PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
40 V
Input Voltage-Min:
3.8 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1 A
Output Voltage-Max:
40 V
Output Voltage-Min:
0.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HLSOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.63 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2200 kHz
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.85 mm
AP64100SP-13 Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to improve heat dissipation.
To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, it's essential to decouple the input and output pins with suitable capacitors to minimize noise and ensure stable operation.
When designing a power supply using the AP64100SP-13, critical components to consider include the input and output capacitors, inductors, and resistors. These components should be selected based on the specific application requirements, such as voltage, current, and frequency.
To troubleshoot common issues with the AP64100SP-13, start by checking the PCB layout and thermal design to ensure proper heat dissipation. Verify that the input and output voltages are within the recommended specifications, and check for any signs of oscillation or instability. If issues persist, consult the datasheet and application notes for guidance.
Yes, when using the AP64100SP-13, it's essential to consider EMI/EMC guidelines to ensure compliance with regulatory standards. This includes using proper shielding, filtering, and grounding techniques to minimize electromagnetic interference and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP64100SP-13 Overview

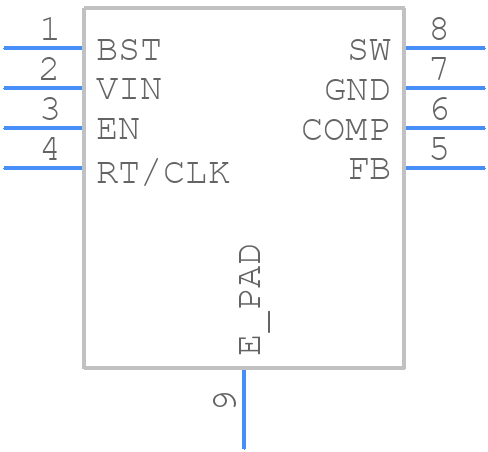

Use the download button to access the AP64100SP-13 schematic symbol, PCB footprint, and 3D model.
