A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure the device is properly biased, make sure to follow the recommended operating conditions outlined in the datasheet. This includes setting the input voltage to the recommended range (4.5V to 18V) and ensuring the output voltage is within the specified range (0.8V to 15V).
For EMI filtering and noise reduction, consider adding a pi-filter (L-C-L) or a common-mode choke at the input stage. Additionally, use a low-ESR output capacitor and ensure the PCB layout is designed to minimize noise coupling.
When selecting an output capacitor, consider the output voltage ripple requirement, output current, and the device's output impedance. A general rule of thumb is to use a low-ESR capacitor with a capacitance value between 10uF to 47uF.
Thermal design considerations include ensuring good airflow around the device, using a heat sink if necessary, and avoiding thermal hotspots on the PCB. The device's thermal resistance (θJA) is 30°C/W, so ensure the PCB design takes this into account.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP64500QSP-13 Overview

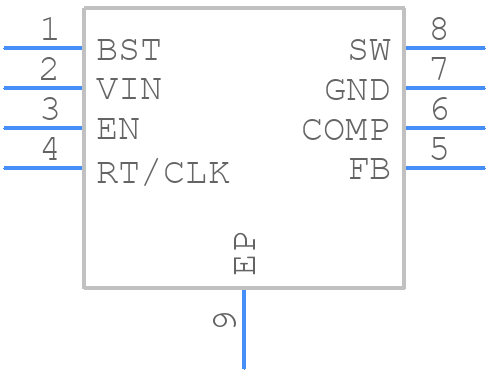

Use the download button to access the AP64500QSP-13 schematic symbol, PCB footprint, and 3D model.
