AP64500SP-13 - Diodes Incorporated

Description: Conv DC-DC 3.8V to 40V Synchronous Step Down Single-Out 0.8V to 39V 5A 8-Pin SO EP T/R

Download AP64500SP-13 Model

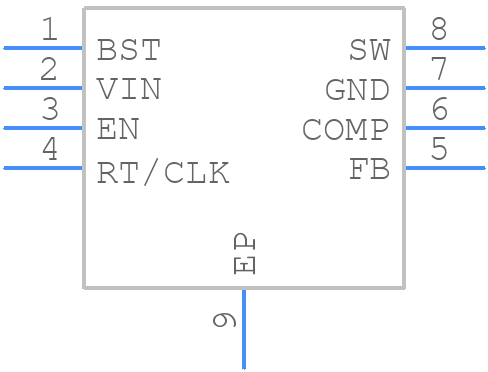

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AP64500SP-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-8EP_2024_3
click to zoom
3D Models
AP64500SP-13 - Diodes Incorporated  - 3D model - Small Outline Packages - SO-8EP_2024_3
click to zoom

AP64500SP-13 Details

  • Manufacturer Part Number:

    AP64500SP-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2019-10-23

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    40 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.63 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AP64500SP-13 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to further improve thermal performance.
  • To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, it's essential to decouple the input and output pins with suitable capacitors to minimize noise and ensure stable operation. A soft-start circuit can also be implemented to prevent inrush currents during power-up.
  • When using the AP64500SP-13, it's crucial to implement proper EMI filtering to minimize electromagnetic interference. This can be achieved by using a pi-filter or a common-mode choke at the input, and a ferrite bead or a capacitor at the output. Additionally, ensure that the PCB layout is designed to minimize loop areas and reduce radiation.
  • To troubleshoot issues with the AP64500SP-13, start by verifying the input voltage and current ratings. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms, and ensure that the output capacitors are properly sized and selected. If issues persist, consult the datasheet and application notes for guidance.
  • The AP64500SP-13 is designed to meet high reliability standards, with a typical lifespan of 10-15 years or more, depending on operating conditions. To ensure maximum reliability, follow proper storage and handling procedures, and operate the device within the recommended specifications. Regularly inspect the device for signs of wear or damage, and replace it if necessary.
