AP64501QSP-13 - Diodes Incorporated

Description: DIODES INC. - AP64501QSP-13 - DC-DC Switching Synchronous Buck Regulator, Adjustable, 3.8-40 V in, 0.8-40 V out, 3 A out, HSOIC-8

Download AP64501QSP-13 Model

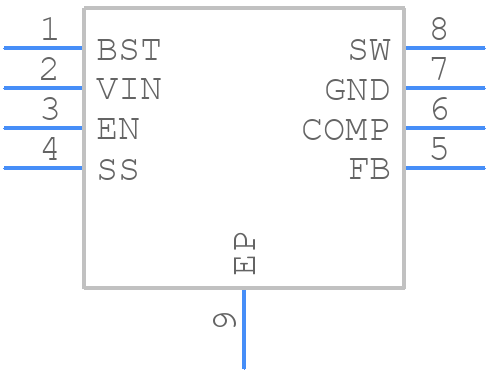

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AP64501QSP-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-8EP
click to zoom
3D Models
AP64501QSP-13 - Diodes Incorporated  - 3D model - Small Outline Packages - SO-8EP
click to zoom

AP64501QSP-13 Details

  • Manufacturer Part Number:

    AP64501QSP-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    40 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.63 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    640 kHz

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AP64501QSP-13 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to improve heat dissipation.
  • To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Also, ensure that the input voltage is within the recommended range, and the output voltage is properly regulated. Additionally, it's recommended to use a low-ESR capacitor for the output filter to minimize voltage ripple.
  • The critical components that affect the device's reliability and lifespan are the input and output capacitors, the inductor, and the PCB layout. Using high-quality components with a high ripple current rating, low ESR, and a high temperature rating can help improve the device's reliability and lifespan.
  • To troubleshoot common issues, start by checking the input voltage and current ratings, and ensure that the device is properly biased. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check for output voltage ripple and noise. Also, verify that the PCB layout is correct and that the components are properly soldered.
  • Recommended testing and validation procedures include input voltage range testing, output voltage regulation testing, efficiency testing, and thermal testing. It's also recommended to perform electromagnetic compatibility (EMC) testing and electromagnetic interference (EMI) testing to ensure compliance with regulatory standards.
