A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to improve heat dissipation.
To ensure the device is protected from overvoltage and overcurrent, it's recommended to add external overvoltage protection (OVP) and overcurrent protection (OCP) circuits. The OVP circuit should be designed to trigger at a voltage higher than the maximum recommended input voltage, and the OCP circuit should be designed to trigger at a current higher than the maximum recommended output current.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as X5R or X7R, with a value of 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable operation.
To optimize the output capacitor selection, choose a low-ESR capacitor with a value of 10uF to 22uF. The capacitor should have a voltage rating higher than the output voltage, and a temperature rating that matches the operating temperature range. Additionally, consider using a capacitor with a high ripple current rating to minimize output ripple voltage.
The recommended thermal interface material (TIM) is a thermal paste or thermal tape with a thermal conductivity of at least 5 W/m-K. This helps to fill the gap between the device and the heat sink, ensuring optimal heat transfer and minimizing thermal resistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP64501SP-13 Overview

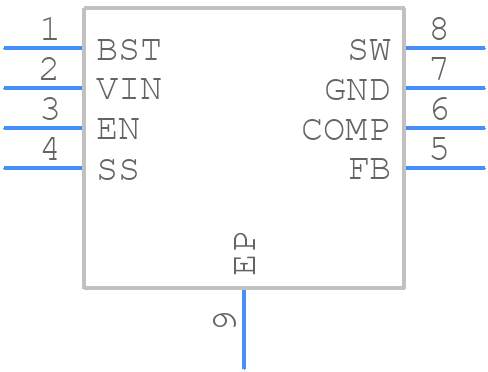

Use the download button to access the AP64501SP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP645,
or try a keyword search, such as Switching Regulator or Controllers
