A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure proper biasing, make sure to follow the recommended operating conditions in the datasheet. This includes setting the input voltage within the specified range, and ensuring the output voltage is within the recommended range. Additionally, ensure the device is properly decoupled with capacitors to minimize noise and ripple.
For EMI and EMC compliance, consider using a shielded enclosure, keeping the device away from sensitive circuits, and using a common-mode choke to reduce emissions. Additionally, ensure proper grounding and decoupling to minimize radiation.
To troubleshoot issues, start by checking the input voltage and current, and ensuring the device is properly biased. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check the output voltage and current waveforms, and ensure the device is properly decoupled.
Diodes Incorporated follows industry-standard reliability and quality standards, including AEC-Q100 and IATF 16949. The AP65450SP-13 is also qualified to automotive standards, ensuring high reliability and quality.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP65450SP-13 Overview

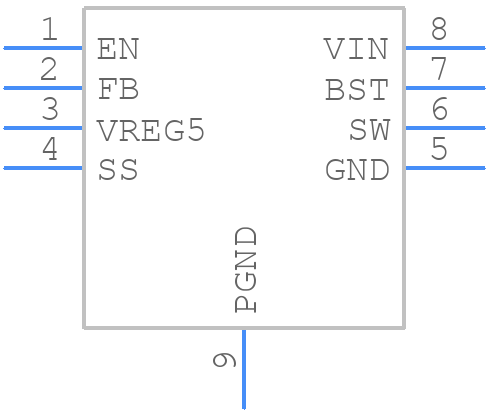

Use the download button to access the AP65450SP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP654,
or try a keyword search, such as Switching Regulator or Controllers
