A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to improve heat dissipation.
To prevent damage during soldering, it's recommended to follow the recommended soldering profile, which is typically 260°C for 10 seconds. It's also important to use a soldering iron with a temperature control and to avoid applying excessive force or pressure on the device.
The recommended input capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor, such as X5R or X7R, to minimize voltage ripple and ensure stable operation.
To troubleshoot issues with the device, it's recommended to check the input voltage, output voltage, and current consumption using an oscilloscope or a multimeter. Also, check the PCB layout and thermal design to ensure they meet the recommended guidelines. If the issue persists, consult the datasheet or contact Diodes Incorporated's technical support for further assistance.
The recommended operating temperature range for the AP65503SP-13 is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
AP65503SP-13 Overview

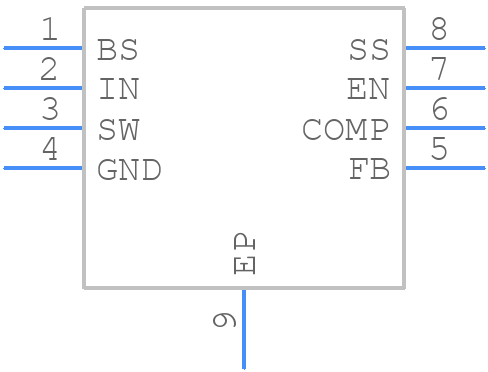

Use the download button to access the AP65503SP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP655,
or try a keyword search, such as Switching Regulator or Controllers
