AP6714M10G-13 - Diodes Incorporated

Description: Conv DCDC Single Step Up 0.9V to 5.5V DiodesZetex AP6714M10G-13, Boost Converter, Step Up 5μA Adjustable, 1.8 → 5.5 V, 1.8 MHz, 10-Pin MSOP

Download AP6714M10G-13 Model

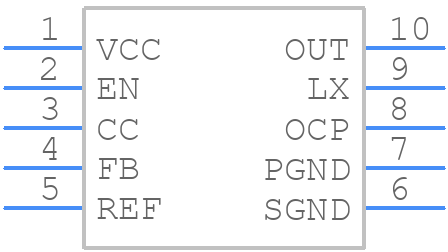

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AP6714M10G-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-10L=-=-
click to zoom
3D Models
AP6714M10G-13 - Diodes Incorporated  - 3D model - Small Outline Packages - MSOP-10L=-=-
click to zoom

AP6714M10G-13 Details

  • Manufacturer Part Number:

    AP6714M10G-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    GREEN, MSOP-10

  • Pin Count:

    10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.8V TO 5.5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.9 V

  • Input Voltage-Nom:

    1.5 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2200 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AP6714M10G-13 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC, and a 2-layer or 4-layer PCB with a solid ground plane is recommended to reduce thermal resistance. A minimum of 2 oz copper thickness is recommended for the PCB.
  • Use a high-quality input capacitor with low ESR, and ensure the input voltage is within the recommended range. Additionally, consider adding a voltage regulator or a voltage supervisor to regulate the input voltage.
  • The maximum current rating for the output pins is 1.5A per pin, but it's recommended to derate the current to 1A per pin for reliable operation.
  • Use a voltage supervisor or a voltage monitor to detect overvoltage and undervoltage conditions, and consider adding a TVS diode or a zener diode to protect the device from voltage transients.
  • The recommended operating temperature range for the AP6714M10G-13 is -40°C to 125°C, but it's recommended to derate the operating temperature to 85°C for reliable operation.
