A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad of the AP7331-18WG-7 to the ground plane. This helps to dissipate heat efficiently.
To ensure stability of the output voltage, it's essential to follow the recommended component values and PCB layout guidelines provided in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) to filter out any noise and ripple.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to derate the input voltage to 15V to ensure reliable operation and to prevent damage to the device.
While the AP7331-18WG-7 is rated for operation up to 125°C, it's essential to consider the thermal derating curve provided in the datasheet to ensure the device operates within its safe operating area. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
To troubleshoot issues with the AP7331-18WG-7, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7331-18WG-7 Overview

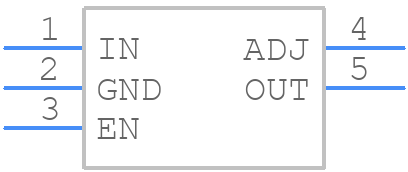

Use the download button to access the AP7331-18WG-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP733,
or try a keyword search, such as Linear Regulator ICs
