A good PCB layout for the AP7366-W5-7 should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC. This helps to reduce thermal resistance and ensures efficient heat dissipation.
To ensure stable output voltage regulation, it's essential to follow the recommended capacitor selection and placement guidelines, maintain a low-ESR output capacitor, and minimize the output voltage ripple.
The AP7366-W5-7 is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the device's power dissipation to ensure reliable operation at higher temperatures.
Yes, the AP7366-W5-7 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design guidelines and testing procedures to ensure compliance with specific industry standards.
To troubleshoot output voltage deviations or instability issues, check the input voltage, output capacitor selection, and PCB layout. Ensure that the input voltage is within the recommended range, and the output capacitor is suitable for the application. Also, verify that the PCB layout follows the recommended guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7366-W5-7 Overview

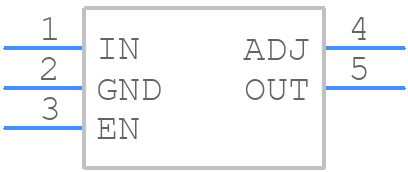

Use the download button to access the AP7366-W5-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP736,
or try a keyword search, such as Linear Regulator ICs
