A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, and to place them close to the device. Additionally, ensure that the input voltage is within the recommended range, and that the output is not overloaded.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the device for reliable operation above 85°C. For ambient temperatures above 85°C, reduce the output current to prevent overheating.
The AP7375-33W5-7 is an industrial-grade device, but it's not specifically designed for high-reliability or automotive applications. For such applications, consider using devices with specific automotive or high-reliability certifications, such as AEC-Q100 or MIL-STD-883.
To protect the device from input voltage surges or spikes, consider adding a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. This helps to absorb or clamp voltage transients, ensuring the device operates within its specified input voltage range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7375-33W5-7 Overview

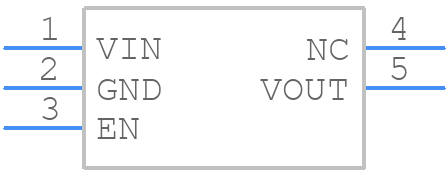

Use the download button to access the AP7375-33W5-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP737,
or try a keyword search, such as Linear Regulator ICs
