AP7375Q-33Y-13 footprint, schematic symbol and 3D model by Diodes Incorporated

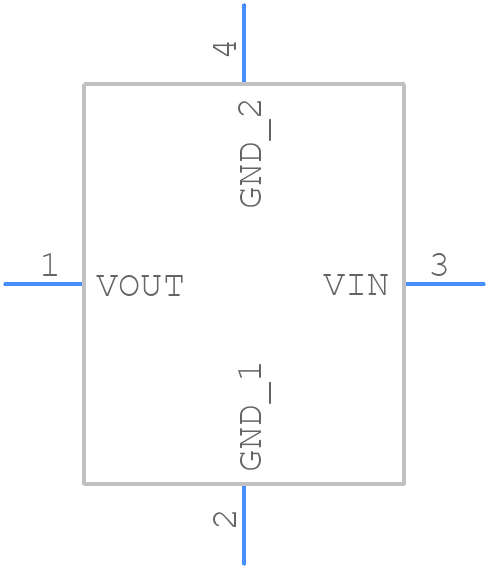

Symbol

click to zoom

PCB Footprints

AP7375Q-33Y-13 - Diodes Incorporated PCB footprint - Other - Other - SOT89[H=1.6mm]

click to zoom

3D Models

AP7375Q-33Y-13 - Diodes Incorporated - 3D model - Other - SOT89[H=1.6mm]

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AP7375Q-33Y-13
Part Number AP7375Q-33Y-13
Manufacturer Diodes Incorporated
Pin Count 4
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOT89[H=1.6mm]
Released Date Mar 7, 2024
Last Modified Date Apr 5, 2024 10:46 AM UTC
Pinout / Pin List Click Here (Member Only)

AP7375Q-33Y-13 Details

Manufacturer Part Number:
AP7375Q-33Y-13
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
12 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
6
Adjustability:
FIXED
Dropout Voltage1-Max:
1.4 V
Dropout Voltage1-Nom:
1.2 V
Input Voltage Absolute-Max:
55 V
Input Voltage-Max:
45 V
Input Voltage-Min:
5.3 V
JESD-30 Code:
R-PSSO-F3
JESD-609 Code:
e3
Length:
4.5 mm
Line Regulation-Max:
0.026202%
Load Regulation-Max(%):
0.081675%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
3
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
0.3 A
Output Voltage1-Max:
3.366 V
Output Voltage1-Min:
3.234 V
Output Voltage1-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HLSOF
Package Equivalence Code:
TO-243
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE
Packing Method:
TR, 13 INCH
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Screening Level:
AEC-Q100
Seated Height-Max:
1.6 mm
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
FLAT
Terminal Pitch:
1.5 mm
Terminal Position:
SINGLE
Voltage Tolerance-Max:
2%
Width:
2.5 mm

AP7375Q-33Y-13 Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the package, using a minimum of 2oz copper thickness, and ensuring good thermal conduction to the surrounding copper area.
To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, as well as the suggested PCB layout. Additionally, ensure that the input voltage is within the recommended range, and the output current is within the specified maximum rating.
The maximum junction temperature (Tj) for the AP7375Q-33Y-13 is 150°C. It's essential to ensure that the device operates within this temperature range to prevent damage or degradation.
The AP7375Q-33Y-13 is an automotive-grade device, making it suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions, and ensure that the device is used within its specified ratings and guidelines.
The enable pin (EN) should be pulled high to enable the device during power-up sequences. During power-down sequences, the EN pin should be pulled low to disable the device. It's essential to follow the recommended power-up and power-down sequences to prevent damage or malfunction.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AP7375Q-33Y-13 Overview

Use the download button to access the AP7375Q-33Y-13 schematic symbol, PCB footprint, and 3D model.
