AP7583AQ-MP-13 footprint, schematic symbol and 3D model by Diodes Incorporated

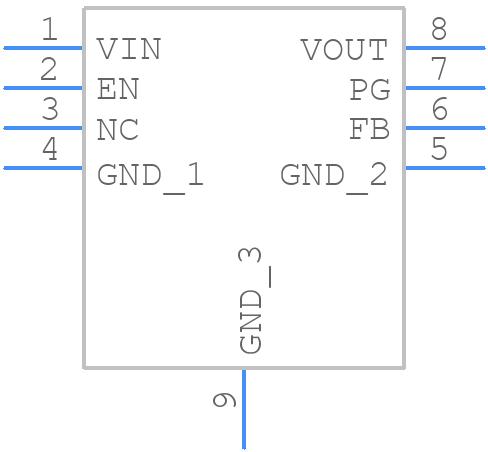

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AP7583AQ-MP-13
Part Number AP7583AQ-MP-13
Manufacturer Diodes Incorporated
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - MSOP-8EP_2023
Released Date Oct 31, 2023
Last Modified Date Apr 5, 2024 5:23 AM UTC
Pinout / Pin List Click Here (Member Only)

AP7583AQ-MP-13 Details

Manufacturer Part Number:
AP7583AQ-MP-13
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-8
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
12 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
6
Adjustability:
ADJUSTABLE
Dropout Voltage1-Max:
0.7 V
Dropout Voltage1-Nom:
0.45 V
JESD-30 Code:
S-PDSO-G8
JESD-609 Code:
e3
Length:
3 mm
Line Regulation-Max (%/V):
0.0236
Load Regulation-Max(%):
0.606%
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
0.3 A
Output Voltage1-Max:
5 V
Output Voltage1-Min:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP8,.2
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR, 13 INCH
Peak Reflow Temperature (Cel):
260
Regulator Type:
ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Screening Level:
AEC-Q100
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

AP7583AQ-MP-13 Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, with a low ESR (Equivalent Series Resistance) and a high ripple current rating. Additionally, the output capacitor should be placed as close to the output pin as possible.
Although the datasheet specifies a maximum input voltage of 26V, it is recommended to derate the input voltage to 24V to ensure reliable operation and to prevent damage to the device.
The AP7583AQ-MP-13 has a built-in overcurrent protection (OCP) feature that limits the output current to 3.5A. However, it is still recommended to add an external fuse or PTC (Positive Temperature Coefficient) thermistor to protect the device from overcurrent conditions.
The recommended input capacitor value is 1uF to 10uF, with a low ESR and a high ripple current rating. A ceramic or film capacitor is recommended, as they have a lower ESR and are more reliable than electrolytic capacitors.
