APA0606220M035R - Kyocera AVX

Description: Aluminum Organic Polymer Capacitors 22UF 35V ESR=70

Download APA0606220M035R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
APA0606220M035R - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

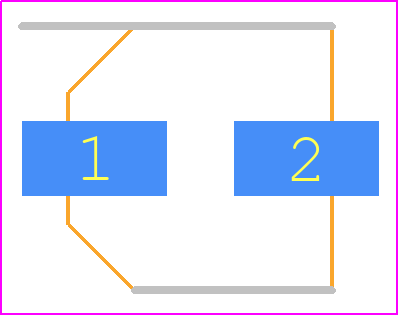

APA0606220M035R - Kyocera AVX PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - APA0606220M035R
click to zoom
3D Models
APA0606220M035R - Kyocera AVX - 3D model - Capacitor Al Electrolytic - APA0606220M035R
click to zoom

APA0606220M035R Details

  • Manufacturer Part Number:

    APA0606220M035R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    7

  • Additional Feature:

    ESR MEASURED AT 100KHZ

  • Capacitance:

    22 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    70 mΩ

  • Height:

    6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.3 mA

  • Length:

    6.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    72.5 mA

  • Size Code:

    2626

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    6.6 mm

APA0606220M035R Frequently Asked Questions (FAQs)

  • The recommended land pattern for APA0606220M035R can be found in the Kyocera AVX Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • While the APA0606220M035R is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature applications. Engineers should consult with Kyocera AVX Components' application notes and thermal management guidelines to determine the suitability of APA0606220M035R for their specific high-temperature application.
  • The APA0606220M035R is designed for high-frequency applications, but its behavior depends on the specific frequency range and operating conditions. Engineers should consult with Kyocera AVX Components' application notes and high-frequency modeling data to understand the component's behavior and optimize their design accordingly.
  • Yes, APA0606220M035R is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS directive and are compatible with lead-free soldering processes. However, engineers should follow the recommended soldering profiles and guidelines to ensure reliable assembly and minimize the risk of defects.
  • The typical tolerance for the capacitance value of APA0606220M035R is ±20%. However, this can vary depending on the specific batch and production lot. Engineers should consult with Kyocera AVX Components' quality department or customer support to obtain more information on the capacitance tolerance for their specific components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

APA0606220M035R Overview

Use the download button to access the APA0606220M035R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like APA06, or try a keyword search, such as Aluminum Electrolytic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
