APA0609221M016R - Kyocera AVX

Description: Aluminum Organic Polymer Capacitors 220UF 16V ESR=30

Download APA0609221M016R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
APA0609221M016R - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

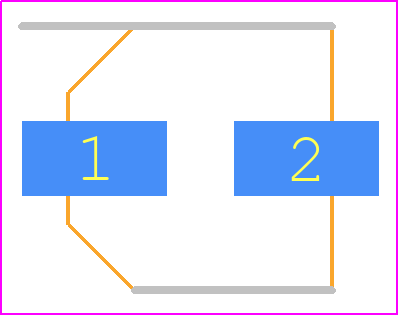

APA0609221M016R - Kyocera AVX PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 0609
click to zoom
3D Models
APA0609221M016R - Kyocera AVX - 3D model - Capacitor Al Electrolytic - 0609
click to zoom

APA0609221M016R Details

  • Manufacturer Part Number:

    APA0609221M016R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    7.45

  • Additional Feature:

    ESR MEASURED AT 100KHZ

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    30 mΩ

  • Height:

    9.3 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.704 mA

  • Length:

    6.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    152.5 mA

  • Size Code:

    2626

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    6.6 mm
