APFA3010LSEKJ3ZGKQBC footprint, schematic symbol and 3D model by Kingbright

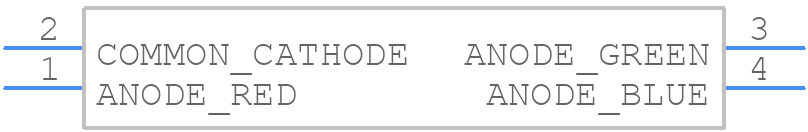

Symbol

PCB Footprints

3D Models

APFA3010LSEKJ3ZGKQBC Details

The recommended operating temperature range for the APFA3010LSEKJ3ZGKQBC is -40°C to 100°C.
Handle the LED by the edges to prevent damage to the pins or the LED chip. Avoid touching the pins or the LED chip with bare hands, as the oils from skin can cause damage.
The maximum forward current that can be applied to the APFA3010LSEKJ3ZGKQBC is 30mA. Exceeding this current may cause damage to the LED.
Yes, the APFA3010LSEKJ3ZGKQBC is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from environmental factors such as moisture and UV radiation.
Store the APFA3010LSEKJ3ZGKQBC in a dry, cool place, away from direct sunlight and moisture. Avoid storing the LED in a location where it may be exposed to mechanical stress or vibration.

Expert Contribution

System Verified

Community Approved

Use the download button to access the APFA3010LSEKJ3ZGKQBC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like APFA3, or try a keyword search, such as Visible LEDs
