APFA3011-AK13/F - Kingbright

Description: Red, Green, Blue (RGB) 625nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.2V Red, 3.2V Green, 3.3V Blue 6-SMD, No Lead

Download APFA3011-AK13/F Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this APFA3011-AK13/F model

Email notifications will be applied after download.

Send part feedback

Symbol

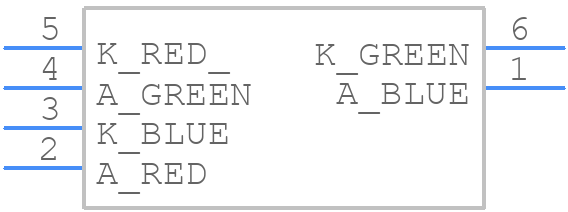

APFA3011-AK13/F - Kingbright - PCB symbol

PCB Footprints

APFA3011-AK13/F - Kingbright PCB footprint - Other - Other - APFA3011-AK13/F-2

3D Models

APFA3011-AK13/F - Kingbright - 3D model - Other - APFA3011-AK13/F-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for APFA3011-AK13/F
Part Number APFA3011-AK13/F
Manufacturer Kingbright
Pin Count 6
Part Category LED
Package Category Other
Footprint Name Other - APFA3011-AK13/F-2
Released Date Nov 30, 2017
Last Modified Date Oct 14, 2024 12:03 PM UTC
Pinout / Pin List Click Here (Member Only)

APFA3011-AK13/F Details

Manufacturer Part Number:
APFA3011-AK13/F
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Date Of Intro:
2017-08-17
Manufacturer:
Kingbright
YTEOL:
6
Color:
HYPER RED/GREEN/BLUE
Configuration:
SEPARATE, 3 ELEMENTS WITH BUILT-IN ZENER DIODE
Forward Current-Max:
0.03 A
Lens Type:
WATER CLEAR
Luminous Intensity-Nom:
410.0/780.0/150.0 mcd
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
TRIPLE COLOR LED
Overall Height:
1 mm
Packing Method:
TR, 7 INCH
Peak Wavelength:
640/520/465 nm
Shape:
RECTANGULAR
Size:
2 mm
Surface Mount:
YES
Viewing Angle:
150 deg

APFA3011-AK13/F Frequently Asked Questions (FAQs)

The recommended storage temperature for APFA3011-AK13/F is -20°C to 30°C.
Yes, APFA3011-AK13/F is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
The maximum forward current for APFA3011-AK13/F is 30mA, but it's recommended to operate at 20mA or less for optimal performance and lifespan.
Yes, APFA3011-AK13/F is compatible with lead-free soldering, but it's recommended to follow the manufacturer's soldering profile guidelines to prevent damage.
The typical luminous intensity of APFA3011-AK13/F is 12,000 mcd, but this value can vary depending on the viewing angle and operating conditions.

Trust Checks

Community Provided

System Verified

Community Approved

APFA3011-AK13/F Overview

Use the download button to access the APFA3011-AK13/F schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like APFA3, or try a keyword search, such as Visible LEDs
