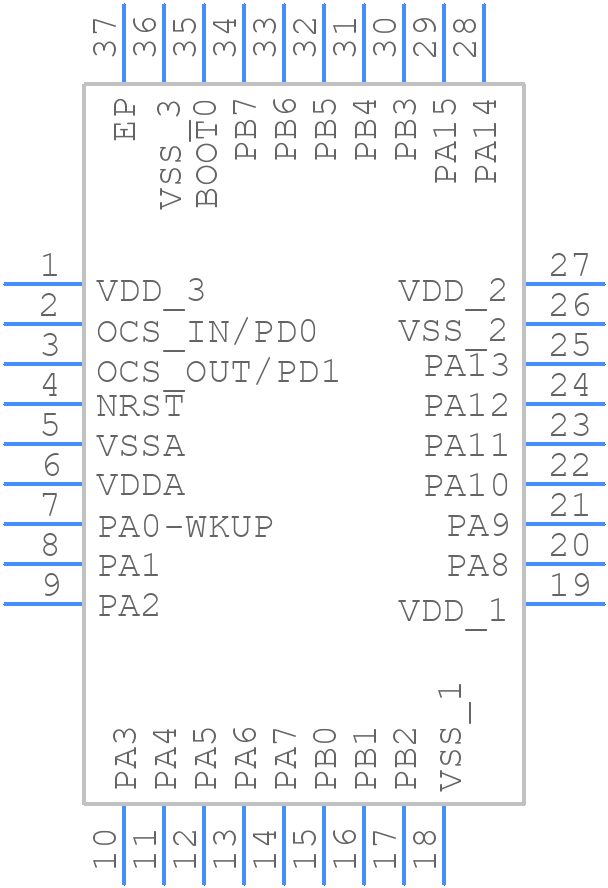

APM32F103TBU6 - GEEHY

APM32F103TBU6 Details

• Manufacturer Part Number:

  APM32F103TBU6

• Part Life Cycle Code:

  Contact Manufacturer

• Package Description:

  QFN-36

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Geehy Semiconductor

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M3

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FLOATING POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-XQCC-N36

• Length:

  6 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  7

• Number of External Interrupts:

  16

• Number of I/O Lines:

  26

• Number of Serial I/Os:

  3

• Number of Terminals:

  36

• Number of Timers:

  5

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC36,.24SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• RAM (bytes):

  20480

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  0.9 mm

• Speed:

  96 MHz

• Supply Current-Max:

  31.05 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  6 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
