APM81815KNBJTR - Allegro Microsystems

Description: Buck Switching Regulator IC Positive Adjustable 1 Output 1.5A 24-PowerFQFN Module, 21 Leads

Download APM81815KNBJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

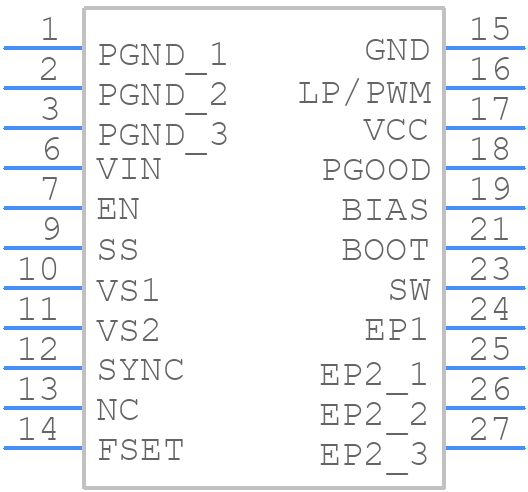

APM81815KNBJTR - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
APM81815KNBJTR - Allegro Microsystems PCB footprint - Other - Other - 24-Lead 4 mm × 4 mm QFN (Suffix NB)
click to zoom
3D Models
APM81815KNBJTR - Allegro Microsystems - 3D model - Other - 24-Lead 4 mm × 4 mm QFN (Suffix NB)
click to zoom

APM81815KNBJTR Details

  • Manufacturer Part Number:

    APM81815KNBJTR

  • Brand Name:

    Allegro

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC24,.15SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.16 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

APM81815KNBJTR Frequently Asked Questions (FAQs)

  • Allegro provides a recommended layout guide in their application note AN296067, which includes thermal pad connection, component placement, and copper pour guidelines.
  • The APM81815 has a flexible power sequencing scheme, which can be configured using external resistors and capacitors. Allegro provides a detailed guide in their application note AN296068, including examples and calculation formulas.
  • Although the datasheet specifies a maximum input voltage rating as 5.5V, Allegro recommends limiting the input voltage to 5V to ensure reliable operation and to avoid overstressing the internal voltage regulator.
  • Yes, the output voltage can be adjusted using external resistors. Allegro provides a calculation formula and examples in their datasheet and application notes.
  • The PG signal is an open-drain output that indicates when the output voltage is within regulation. You can connect it to a microcontroller or other logic device to monitor the power status. Allegro recommends using a pull-up resistor to ensure proper operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

APM81815KNBJTR Overview

Use the download button to access the APM81815KNBJTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like APM81, or try a keyword search, such as Switching Regulator or Controllers
